Google Pay Widget

The MobileSDK provides a GooglePayWidget composable widget that you can use to interact with GooglePay. The button initializes GooglePay, handles the payment requests, and finalizes the charge through Paydock. The final result is then returned as a callback.

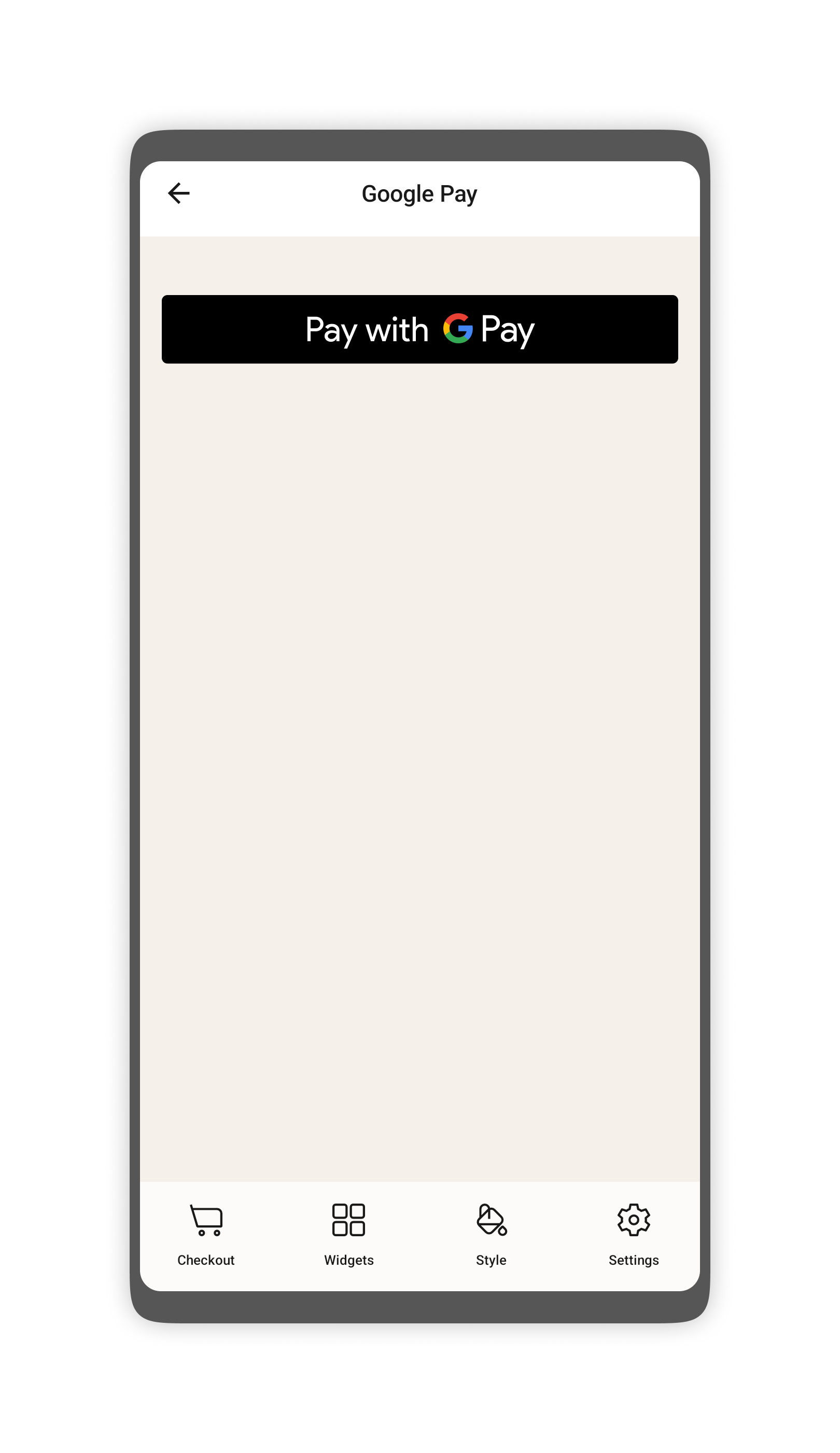

GooglePay View

1. Overview

The GooglePay widget facilitates payments using GooglePay services. This section provides a step-by-step guide on how to initialize and use the GooglePayWidget composable in your application. The widget facilitates the payment using GooglePay services.

Note: Before using your GooglePay widget, ensure that you have generated a wallet_token. The wallet_token forms a part of the request body for your widget.

The following sample code demonstrates the definition of the GooglePayWidget:

fun GooglePayWidget(
    modifier: Modifier,
    token: (onTokenReceived: (String) -> Unit) -> Unit,
    isReadyToPayRequest: JSONObject,
    paymentRequest: JSONObject,
    completion: (Result<ChargeResponse>) -> Unit
) {...}

The following sample code example demonstrates how to use the widget in your application:

// Initialize the GooglePayWidget
GooglePayWidget(
    modifier = Modifier
        .fillMaxWidth()
        .padding(16.dp), // optional
    token = { callback ->
        // Obtain Wallet Token asynchronously using the callback
        // Example: Initiate Wallet Transaction to retrieve the wallet token
        val walletToken = // ... retrieve the token
        callback(walletToken)
    },
    isReadyToPayRequest = PaymentsUtil.createIsReadyToPayRequest(),
    paymentRequest = PaymentsUtil.createGooglePayRequest(
        amount = BigDecimal(AMOUNT),
        amountLabel = AMOUNT_LABEL,
        currencyCode = CURRENCY_CODE,
        countryCode = COUNTRY_CODE,
        merchantName = MERCHANT_NAME,
        merchantIdentifier = MERCHANT_IDENTIFIER,
        shippingAddressRequired = true,
        shippingAddressParameters = shippingAddressParameters
    )
) { result ->
    // Handle the result of the payment operation
    result.onSuccess { chargeResponse ->
        // Handle success - Update UI or perform actions
        Log.d("GooglePayWidget", "Payment successful.")
    }.onFailure { exception ->
        // Handle failure - Show error message or take appropriate action
        Log.e("GooglePayWidget", "Payment failed. Error: ${exception.message}")
    }
}

2. Parameter definitions

This subsection describes the parameters required by the GooglePayWidget composable. It defines the purpose of each parameter and its significance in configuring the behavior of the GooglePayWidget.

GooglePayWidget

Name	Definition	Type	Mandatory/Optional
modifier	Compose modifier for container modifications	`androidx.compose.ui.Modifier`	Optional
token	A callback to obtain the wallet token asynchronously	`(onTokenReceived: (String) -> Unit) -> Unit`	Mandatory
isReadyToPayRequest	GooglePay request for determining if a user is considered ready to pay.	`JSONObject` → `IsReadyToPayRequest`	Mandatory
paymentRequest	GooglePay request for providing necessary information to support a payment.	`JSONObject` → `PaymentDataRequest`	Mandatory
completion	Result callback with the Charge creation API response if successful, or error if not.	`(Result<ChargeResponse>) -> Unit`	Mandatory

3. How to create GooglePay request objects

Create Google Pay request objects and mappings, which are required by the GooglePayWidget widget. Simply use the util provided by the MobileSDK (PaymentsUtil) with the accompanying helper methods.

The following sample code example demonstrates how to create request objects:

4. How to create an IsReadyToPayRequest

You can create a request to check if the user is ready to pay with GooglePay.

object PaymentsUtil {

/**
  * Create a request to check if the user is ready to pay with Google Pay.
  */
  fun createIsReadyToPayRequest(
      allowedCardAuthMethods: List<String> = ALLOWED_CARD_AUTH_METHODS,
      allowedCardNetworks: List<String> = ALLOWED_CARD_NETWORKS,
      billingAddressRequired: Boolean = true
  ): JSONObject {...}

  ... //Other helper methods
}

PaymentsUtil.createIsReadyToPayRequest()
// OR
PaymentsUtil.createIsReadyToPayRequest(billingAddressRequired = false)

5. How to create a PaymentDataRequest

You can create a GooglePay payment request based on provided paramaters.

object PaymentsUtil {

/**
  * Create a Google Pay payment request based on provided parameters.
  */
  fun createGooglePayRequest(
      amount: BigDecimal, // required
      amountLabel: String, // required
      countryCode: String, // required
      currencyCode: String, // required
      merchantName: String? = null, // required
      merchantIdentifier: String, // required
      allowedCardAuthMethods: List<String> = ALLOWED_CARD_AUTH_METHODS,
      allowedCardNetworks: List<String> = ALLOWED_CARD_NETWORKS,
      billingAddressRequired: Boolean = true,
      shippingAddressRequired: Boolean = false,
      shippingAddressParameters: JSONObject? = null
  ): JSONObject {...}

  ... //Other helper methods
}

// Showing required parameters
PaymentsUtil.createGooglePayRequest(
	amount = BigDecimal(1.00),
	amountLabel = "amount label",
	currencyCode = "GBP",
	countryCode = "UK",
	merchantIdentifier = "<merchant Id>"
)
// OR (customising optional parameters)
PaymentsUtil.createGooglePayRequest(
	... required parameters
    shippingAddressRequired = true,
    shippingAddressParameters = JSONObject().apply {
        put("phoneNumberRequired", true)
        put("allowedCountryCodes", JSONArray(listOf("US", "GB", "AU")))
    }
)

6. Request object definitions

The following references provide more detailed definitions of the IsReadyToPayRequest and PaymentDataRequest used in your GooglePay widget.

IsReadyToPayRequest (JSONObject): PaymentsUtil.createIsReadyToPayRequest()

Reference: IsReadyToPayRequest

Name	Definition	Type	Mandatory/Optional
allowedCardAuthMethods	List of allowed card authentication methods ("PAN_ONLY", "CRYPTOGRAM_3DS")	List<String>	Optional
allowedCardNetworks	List of allowed card networks ("AMEX", "DISCOVER", "JCB", "MASTERCARD", "VISA")	List<String>	Optional
billingAddressRequired	Indicates whether billing address is required	Boolean	Mandatory

PaymentDataRequest (JSONObject): PaymentsUtil.createGooglePayRequest()

Reference: PaymentDataRequest

Name	Definition	Type	Mandatory/Optional
amount	The charge amount	BigDecimal	Mandatory
amountLabel	The label for the payment amount	String	Mandatory
countryCode	The country code	String	Mandatory
currencyCode	The currency code	String	Mandatory
merchantName	The merchant name	String	Optional
merchantIdentifier	The merchant identifier from Paydock	String	Mandatory
allowedCardAuthMethods	List of allowed card authentication methods ("PAN_ONLY", "CRYPTOGRAM_3DS")	List<String>	Optional
allowedCardNetworks	List of allowed card networks ("AMEX", "DISCOVER", "JCB", "MASTERCARD", "VISA")	List<String>	Optional
billingAddressRequired	Indicates whether billing address is required	Boolean	Optional
shippingAddressRequired	Indicates whether shipping address is required	Boolean	Optional
shippingAddressParameters	Parameters for shipping address, if required.	`JSONObject`	Optional

7. ChargeResponse

This subsection outlines the structure of the result or response object returned by the GooglePayWidget composable. It details the format and components of the object, enabling you to handle the response effectively within your application.

The following sample code demonstrates the response structure:

data class ChargeResponse(
    val status: Int,
    val resource: ChargeResource
) {

    data class ChargeResource(
        val type: String,
        val data: ChargeData?
    )

    data class ChargeData(
        val status: String,
        val id: String,
        val amount: BigDecimal,
        val currency: String
    )
}

Name	Definition	Type
status	Charge result HTTP status code	Int
resource	Charge resource containing data related to charge	`ChargeResponse.Resource`

ChargeResponse.Resource

Name	Definition	Type
type	Charge result HTTP status code	String
data	Charge data result containing actual data regarding charge such as amount, currency, and so on.	`ChargeResponse.Data`

ChargeResponse.ChargeData

Name	Definition	Type
status	Charge result status as a string	String
amount	Charge amount that was charged	`BigDecimal`
currency	Charge currency that was used	String

7. Callback Explanation

Token Callback

The token callback is used to obtain the wallet token asynchronously. It receives a callback function (onTokenReceived: (String) -> Unit) as a parameter, which should be invoked with the wallet token once it's obtained.

Completion Callback

The completion callback is invoked after the payment operation is completed. It receives a Result<ChargeResponse> if the payment is successful. The callback is used to handle the outcome of the payment operation.
